    High Efficiency Psa Nitrogen Gas Plant

    Ask Lasest Price
    Brand Name : TCWY
    Certification : As customer's request
    Price : Negotiable
    • Product Details
    • Company Profile

    High Efficiency Psa Nitrogen Gas Plant


    High Efficiency Psa Nitrogen Gas Plant 5-3000Nm3/H Capacity Low Power Consumption


    Product Description

    TCWY's High efficiency low power consumption PSA Nitrogen Plant adopts the principle that under a certain pressure, the diffusion speeds of oxygen and nitrogen are quite different on carbon molecular sieve. In a short time, oxygen molecule is adsorbed by the carbon molecular sieve but nitrogen can pass through the molecular sieve bed layer to separate the oxygen and nitrogen.


    After the adsorption process, the carbon molecular sieve will regenerate by depressurizing and desorb the oxygen.

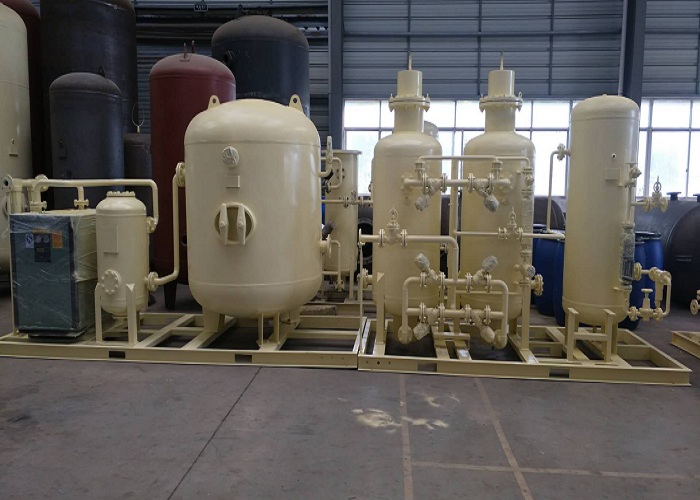

    Our PSA Nitrogen Plant is equiped with 2 adsorbers, one in adsorption to produce nitrogen, one in desorption to regenerate the molecular sieve. Two adsorbers work alternately to generate qualified product nitrogen continuously.


    Technical Features
    • The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.
    • Perfect process design and best use effect;
    • Modular design is designed to save land area.
    • The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.
    • Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow;
    • Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
    • The key components of famous brands are the effective guarantee of equipment quality.
    • The automatic emptying device of national patent technology guarantees the nitrogen quality of finished products.
    Technical Spec.
    • Nitrogen production: 5~3000Nm3/h
    • Nitrogen purity: 95%~99.999%
    • Nitrogen pressure: 0.1~0.8MPa(Adjustable)
    • Dew point: -40℃ or -60℃
    • Voltage:Local voltage
    • Power(W):Depend on the capacity

    Cases
